Secure Communication Interface Device

The Communication Interface Box provides secure remote access to PME-PMI, SAPHIR, ICE, and Linky Pro meters via IP, radio, or Ethernet.

Secure Communication Interface Device

Enables secure remote access to industrial meters via IP, radio, or Ethernet, operating as pass-through or gateway.

ACTIA Energy » Solutions » Connectivity Solutions » Secure Communication Interface Device

REF. BIC-9010 Categories Connectivity Solutions, Communication Modules for Metering Tags Auxiliary Units Panel, Electrical Distribution, Electrical Engineering, Energy, Energy Security, Flexibility, Industry, LV, Source Station

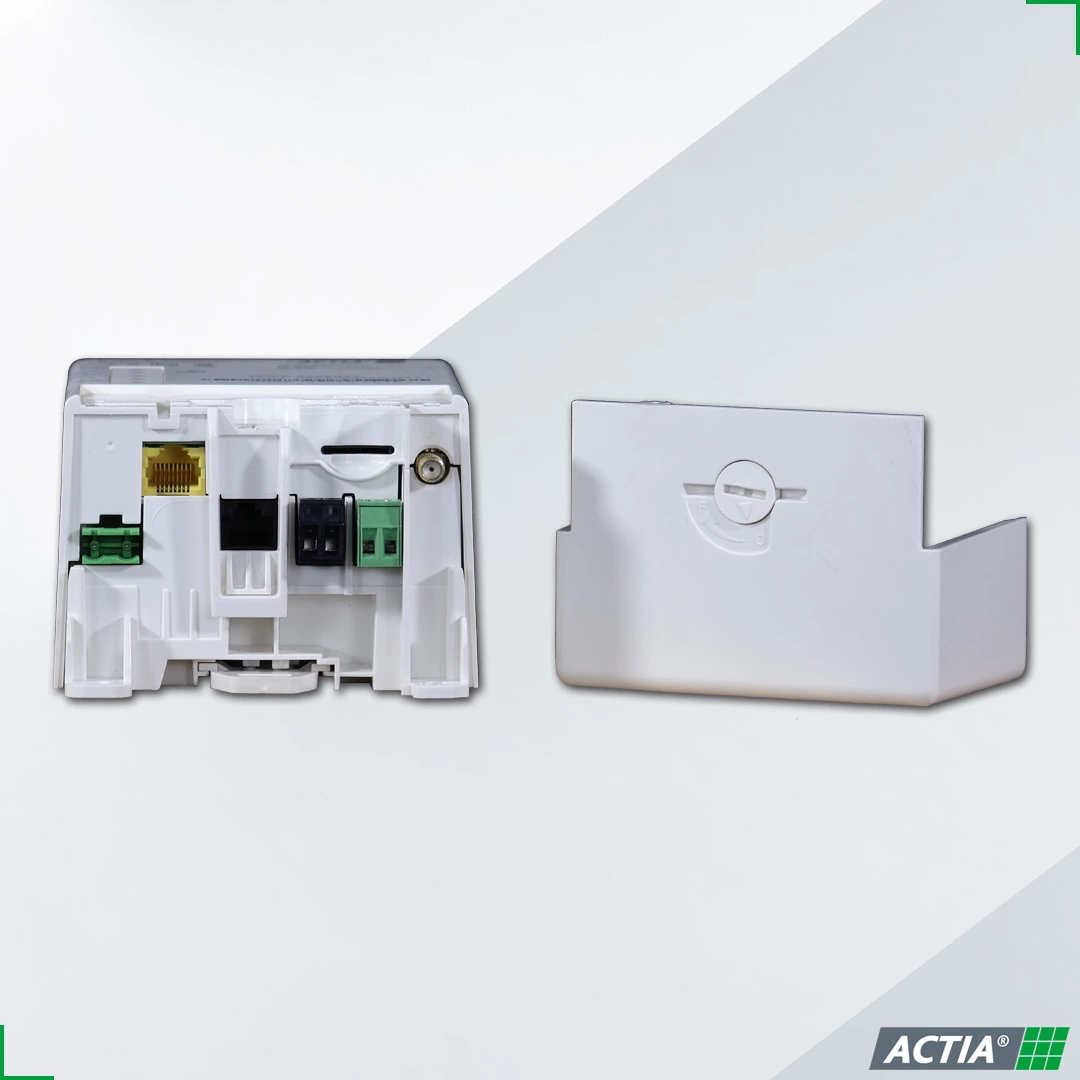

BIC9010

The Communication Interface Box provides secure remote access to PME-PMI, SAPHIR, ICE, and Linky Pro meters via IP, radio, or Ethernet.

The BIC9010 Communication Interface Box is designed to provide secure and durable connectivity to industrial meters (SMEs, SAPHIR, ICE, and Linky Pro) via IP networks (GPRS/UMTS/LTE-M) or Ethernet.

It enables secure remote access to metering data in pass-through or gateway mode, adapting to the environment via mains power or the meter.

Compliant with ERDF specifications, this Communication Interface Box integrates an internal battery, multiple interfaces (RS232, Euridis, Ethernet, etc.), a radio antenna (internal or external), a sealed opening sensor, and cybersecurity compatibility.

Its compact size, DIN rail mounting, and industrial robustness make it ideal for critical metering installations.

Soluciones de conectividad Interfaz de comunicación segura - ACTIA Energy

Solutions de Connectivité Boîtier Interface Communication Sécurisée - ACTIA Energy

This post is also available in: Français Español

The BIC9010 Communication Interface Box is designed to provide secure and durable connectivity to industrial meters (SMEs, SAPHIR, ICE, and Linky Pro) via IP networks (GPRS/UMTS/LTE-M) or Ethernet.

It enables secure remote access to metering data in pass-through or gateway mode, adapting to the environment via mains power or the meter.

Compliant with ERDF specifications, this Communication Interface Box integrates an internal battery, multiple interfaces (RS232, Euridis, Ethernet, etc.), a radio antenna (internal or external), a sealed opening sensor, and cybersecurity compatibility.

Its compact size, DIN rail mounting, and industrial robustness make it ideal for critical metering installations.

Features

Secure connection to meters via IP, GSM or Ethernet
Pass-through and gateway modes for frame transmission
Compatible with PME-PMI, SAPHIR (RS232) and ICE (Euridis)
Internal antenna or connector for external antenna
Reset external equipment via low-level command
LED interface, SIM card reader, integrated reset button

Technical specifications

Power supply: 230 Vac / 57.7 Vac or 10 Vdc via meter
Interfaces: Ethernet RJ45, RS232, Euridis, SMA antenna
Dimensions: 158 × 99 × 69.5 mm – Weight: 511 g
Mounting: DIN rail or screw mounting
Internal 3.6 V NiMH battery – Door opening sensor

Standards: TEL/BOI/CDC/0011 V1.1, ERDF-CPT-M&S-Spe-09019A

Applications

Industrial remote metering for electrical networks
Migration from legacy GSM-CSD modems
Remote management for SMEs, SAPHIR, ICE
Integration into enterprise information systems (ERP)
Environments without radio coverage (secure Ethernet fallback)
