Rackable 3U MV Circuit Breaker Simulator for PCCN Testing

3U rack-mountable HV circuit breaker simulator for testing Relays. A versatile and robust tool for simulating the functions of a circuit breaker in a test environment for departure, arrival and coupling racks.

Rackable 3U MV Circuit Breaker Simulator for PCCN Testing

Accurately simulates MV circuit breaker functions to test PCCN digital protections in rack-based environments.

ACTIA Energy » Solutions » Network Testing & Monitoring » Rackable 3U MV Circuit Breaker Simulator for PCCN Testing

REF. DJ-FIC Categories Network Testing & Monitoring, Digital Protection Testing Tags 3U rack, ATR testing, circuit breaker testing, digital protection, ESSAILEC, Fictitious circuit breaker, HV circuit breaker simulator, STM32, substation equipment., TAC testing, touchscreen HMI, TSA testing, UTDC testing

Dummy Circuit Breaker PNM

3U rack-mountable HV circuit breaker simulator for testing Relays. A versatile and robust tool for simulating the functions of a circuit breaker in a test environment for departure, arrival and coupling racks.

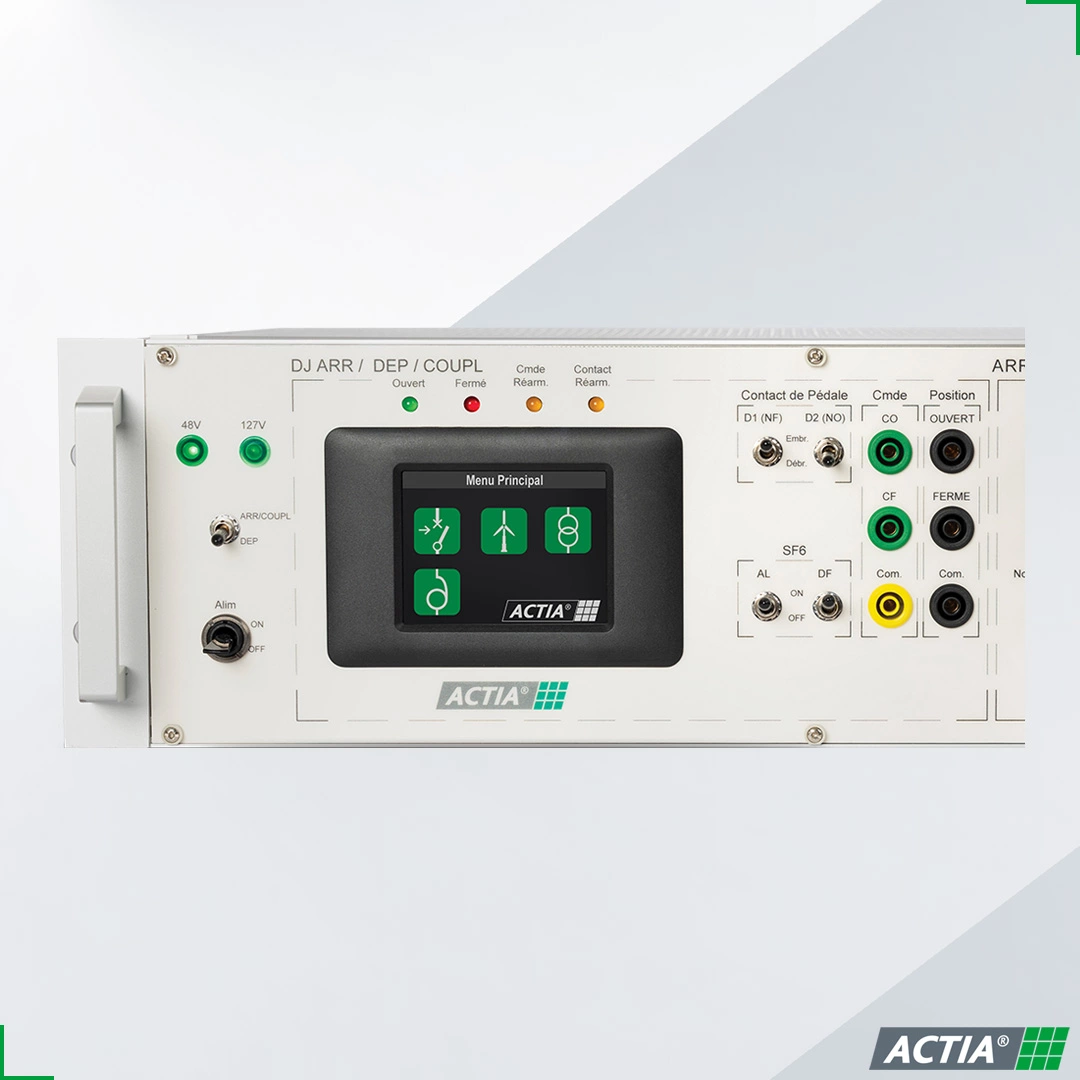

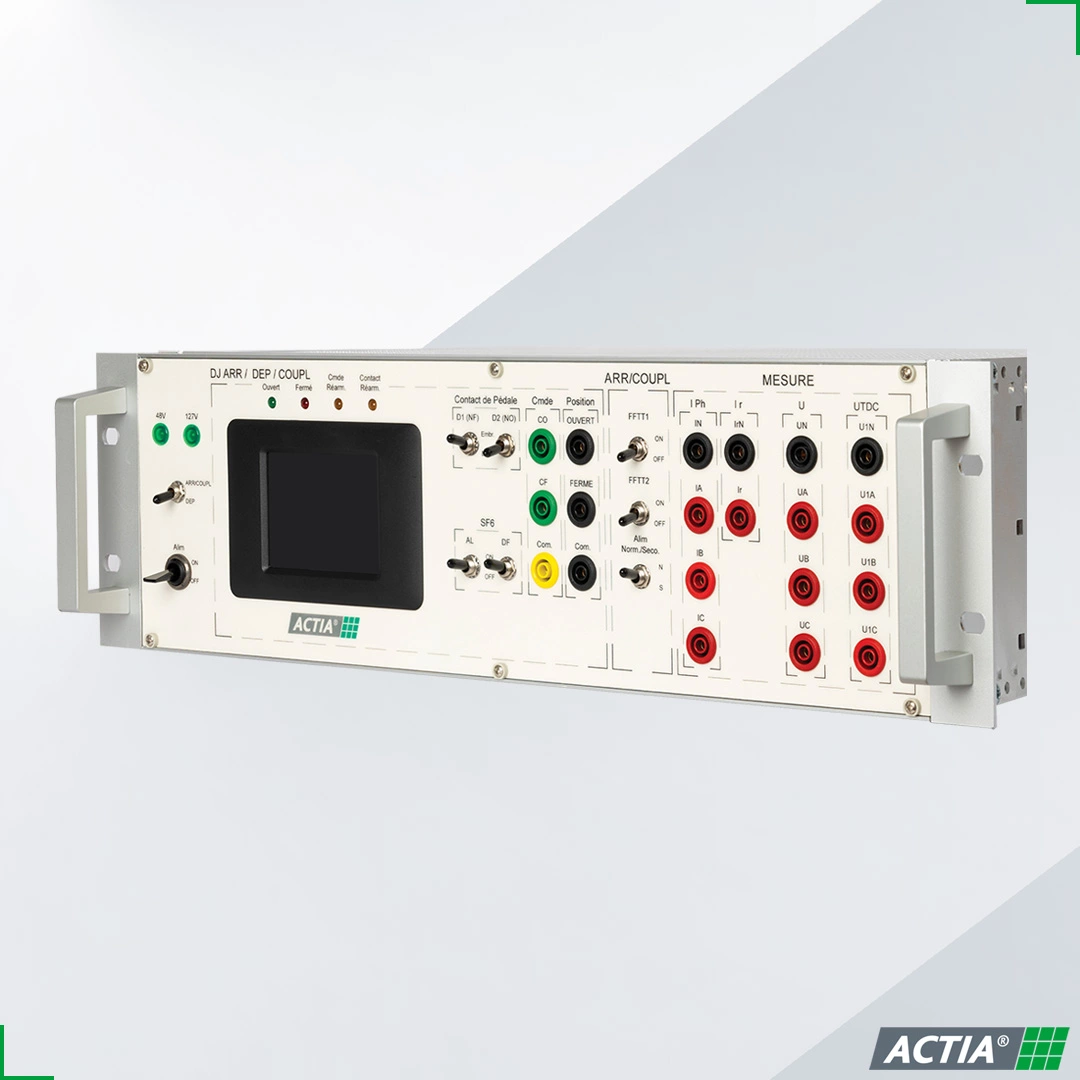

The PNM 3U Rack Dummy Circuit Breaker is a testing solution designed for Digital Relays devices. With its ESSAILEC connections, intuitive touchscreen interface and multi-manufacturer compatibility (48V / 127V), it can accurately simulate all the operating conditions of a high-voltage dummy circuit breaker: motor reset, SF6 thresholds, plugging/unplugging, non-complementarity, Buchholz faults, etc.

The product is designed to fit easily into a 19-inch rack, with quick access to functions via HMI and physical buttons.

Shock-resistant (up to 5g), it features robust Schroff mechanics and an STM32 microcontroller for reliability and performance.

Medio de prueba y supervisión de rede Simulador de interruptor automático alta tension 3U para pruebas - ACTIA Energy

Moyen de Test & Supervision Réseau Simulateur de Disjoncteur HTA rackable 3U pour Tests - ACTIA Energy

Moyen de Test & Supervision Réseau Simulateur de Disjoncteur HTA rackable 3U pour Tests - ACTIA Energy

Moyen de Test & Supervision Réseau Simulateur de Disjoncteur HTA rackable 3U pour Tests - ACTIA Energy

This post is also available in: Français Español

The PNM 3U Rack Dummy Circuit Breaker is a testing solution designed for Digital Relays devices. With its ESSAILEC connections, intuitive touchscreen interface and multi-manufacturer compatibility (48V / 127V), it can accurately simulate all the operating conditions of a high-voltage dummy circuit breaker: motor reset, SF6 thresholds, plugging/unplugging, non-complementarity, Buchholz faults, etc.

The product is designed to fit easily into a 19-inch rack, with quick access to functions via HMI and physical buttons.

Shock-resistant (up to 5g), it features robust Schroff mechanics and an STM32 microcontroller for reliability and performance.

Features

Full simulation of Circuit Breaker, TAC, TSA and ATR functions
Configurable time settings (closing, opening, reset, interlock)
Management of non-complementarities (00/11)
LED display of DJ and motor position
Touchscreen interface with intuitive navigation
Simplified ESSAILEC connections
TAC pulse timing
Start/Stop/Coupling selector
Robust connections

Technical specifications

3U rack format (355 x 482.6 x 133.35 mm – 19")
Weight: 6 kg
IP20
Shock resistance: up to 5g
48V and 127V compatible power supply
STM32 microcontroller
Touch screen + 4 HMI buttons
4 GB micro SD card included
Grounding braid for earthing
1-year warranty

Applications

Relays testing in workshop or validation platform environments
Simulation of circuit breakers for departure, arrival or coupling racks
Functional verification prior to commissioning of relays
Technical training or demonstration benches

Brochure

DISJONCTEUR-FICTIF-E1-FP-FR

DISJONCTEUR-FICTIF-E1-FP-FR
